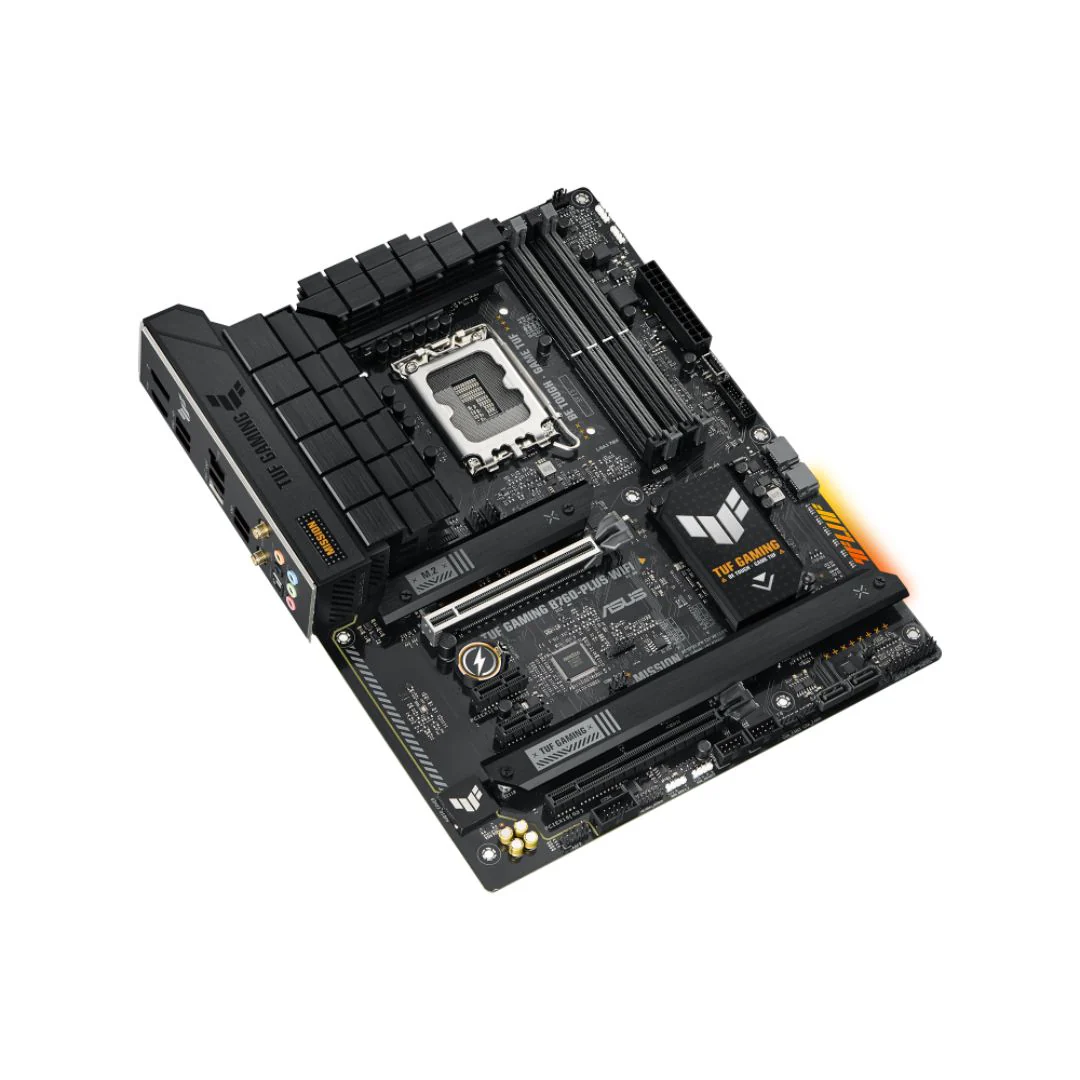

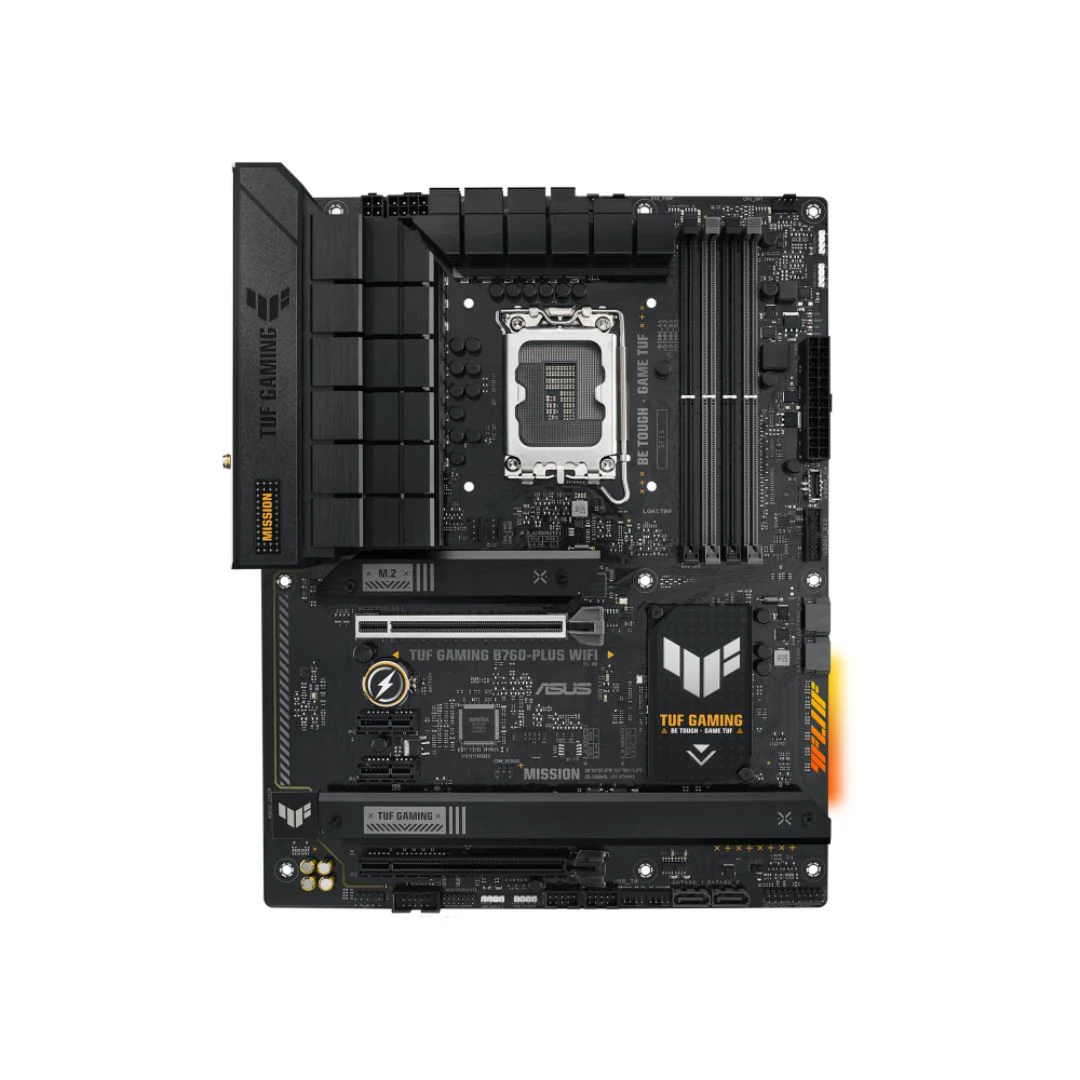

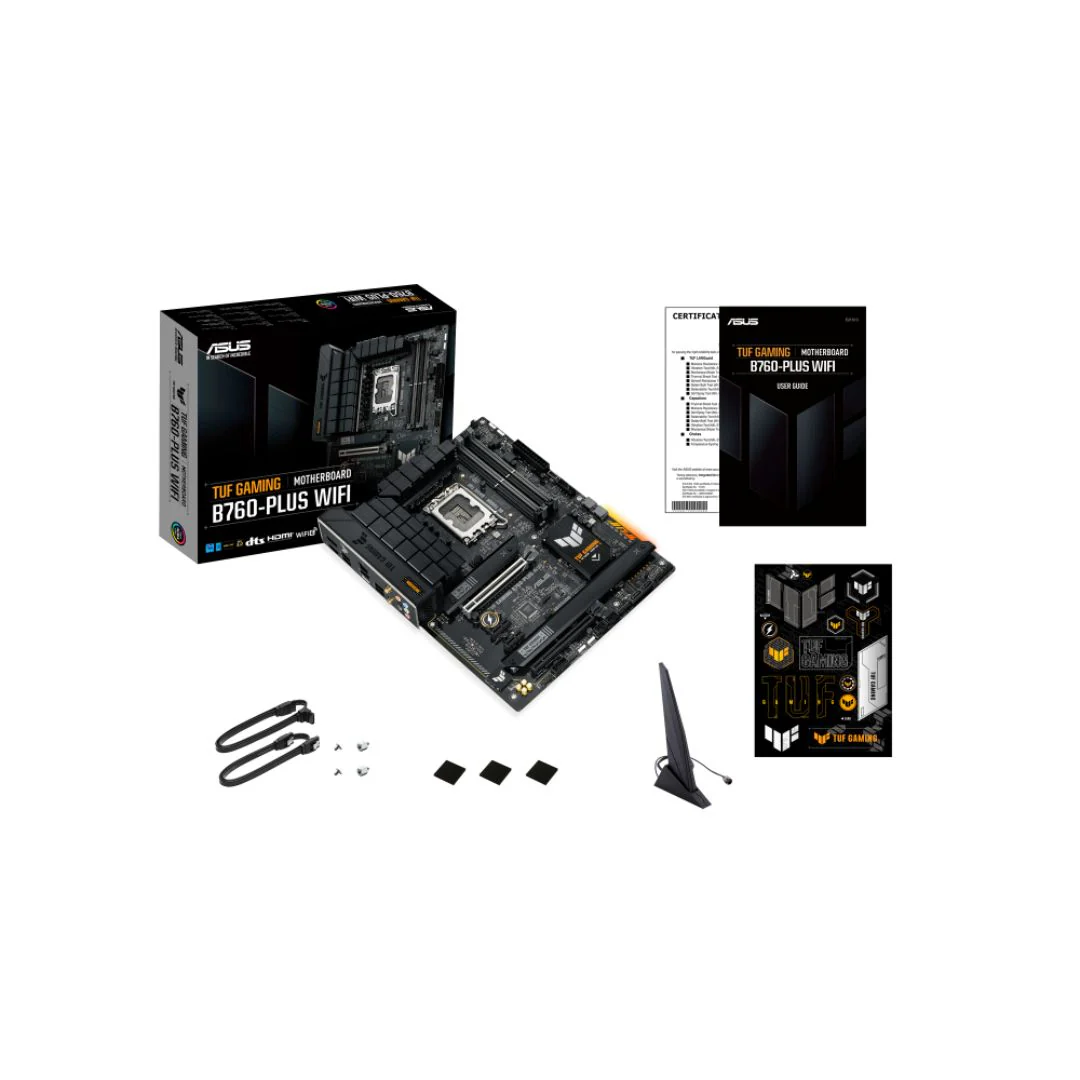

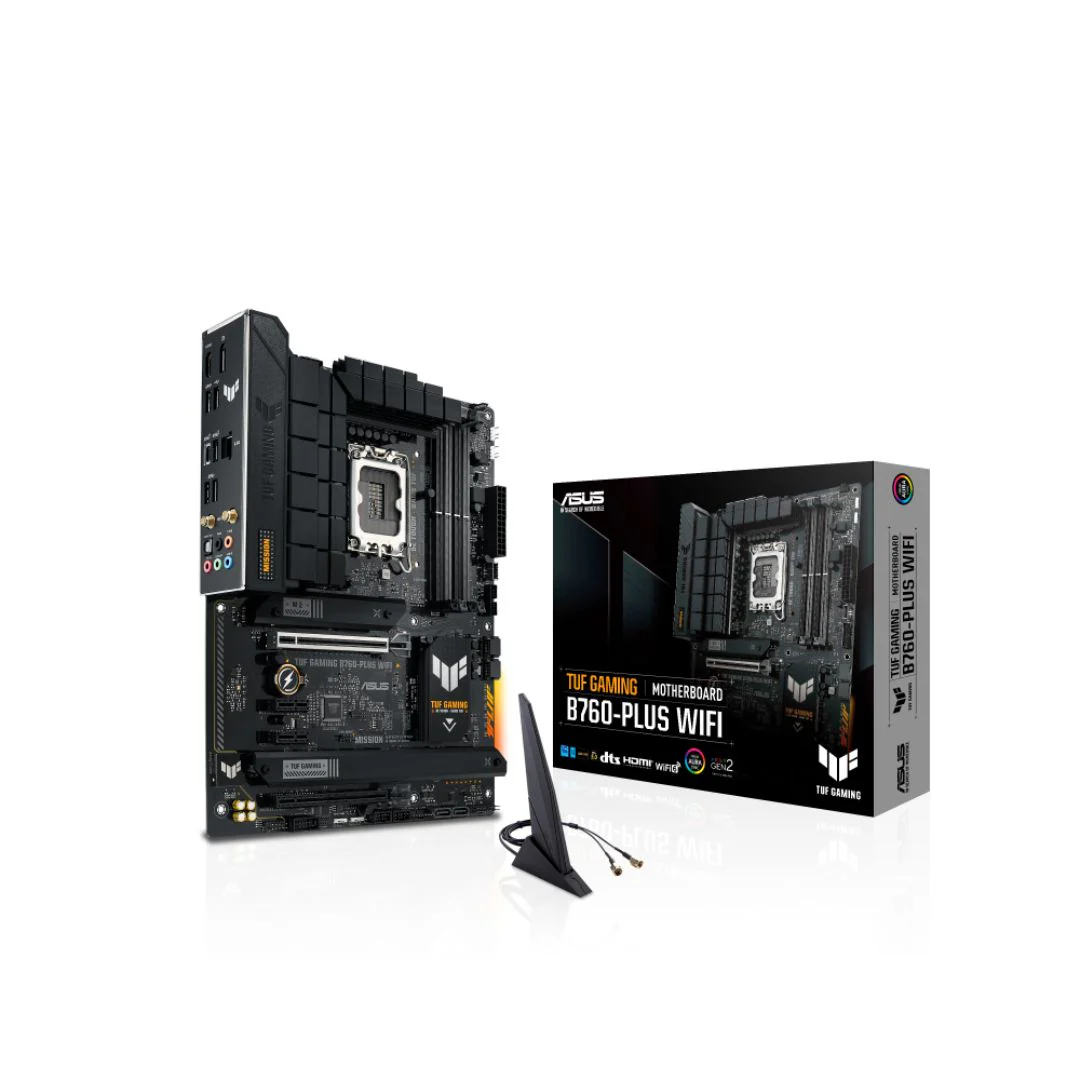

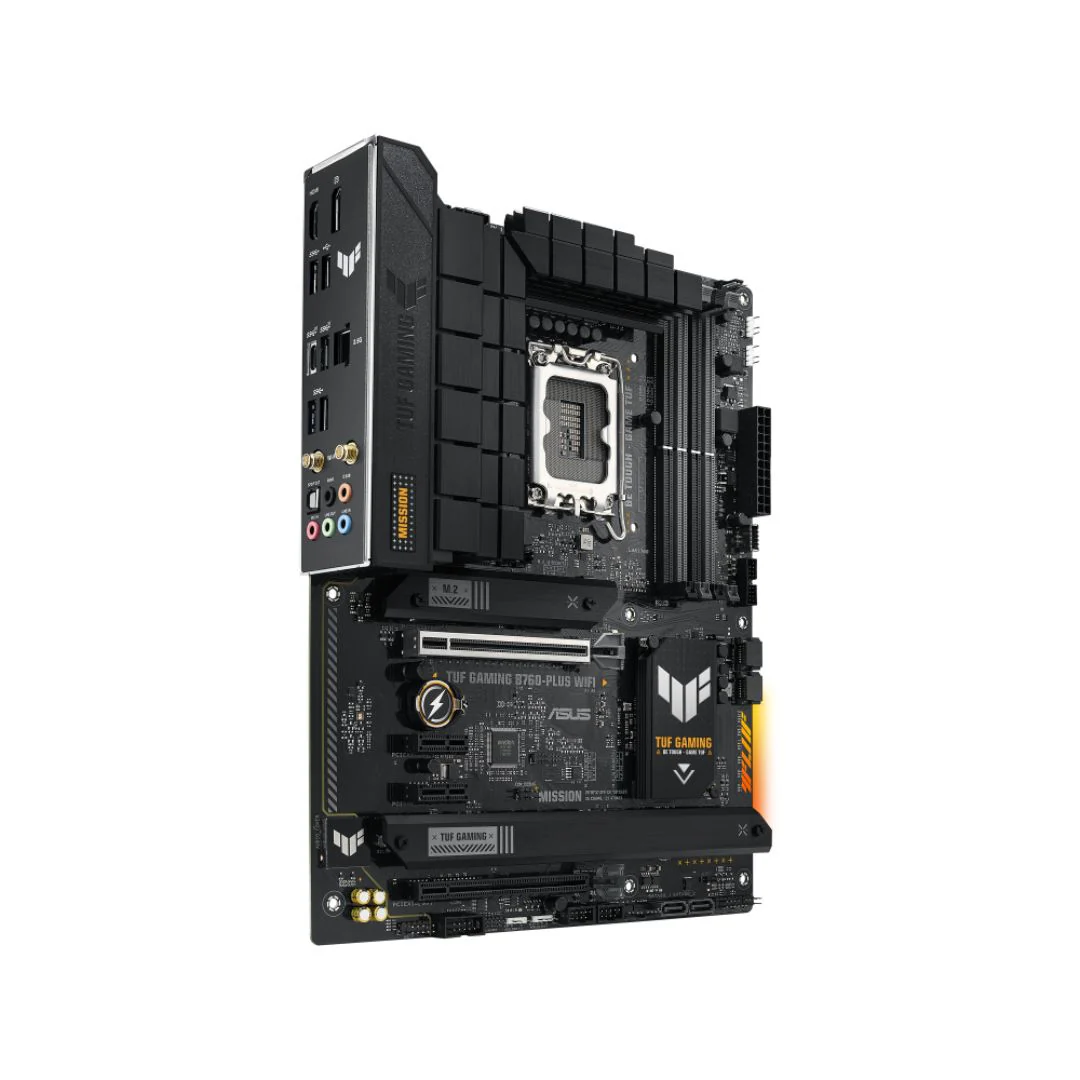

ASUS TUF GAMING B760-PLUS WIFI D5, Motherboard

Motherboard Specification:

• Processor Support: Intel® Socket LGA1700 for 13th & 14th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
• Chipset: Intel® B760 Chipset
• Memory Support: 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
• Graphics Ports: 1 x DisplayPort, 1 x HDMITM port
• Expansion Slots:
  • Intel® 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot
  • Intel® B760 Chipset: 1 x PCIe 3.0 x16 slot, 2 x PCIe 3.0 x1 slots
• Storage:
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® 13th & 12th Gen Processors: M.2_1 slot (Key M) supports PCIe 4.0 x4 mode
  • Intel® B760 Chipset: M.2_2 slot (Key M) supports PCIe 4.0 x4 mode, M.2_3 slot (Key M) supports PCIe 4.0 x4 mode, 4 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 2.5Gb Ethernet
• Wireless & Bluetooth: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth® v5.2
• USB: Rear: 1 x USB 3.2 Gen 2x2 Type-C®, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 1 x USB 2.0 Type-A; Front: 1 x USB 3.2 Gen 2 Type-C®, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Internal I/O Connectors: Includes fan, power, storage, USB, and other headers

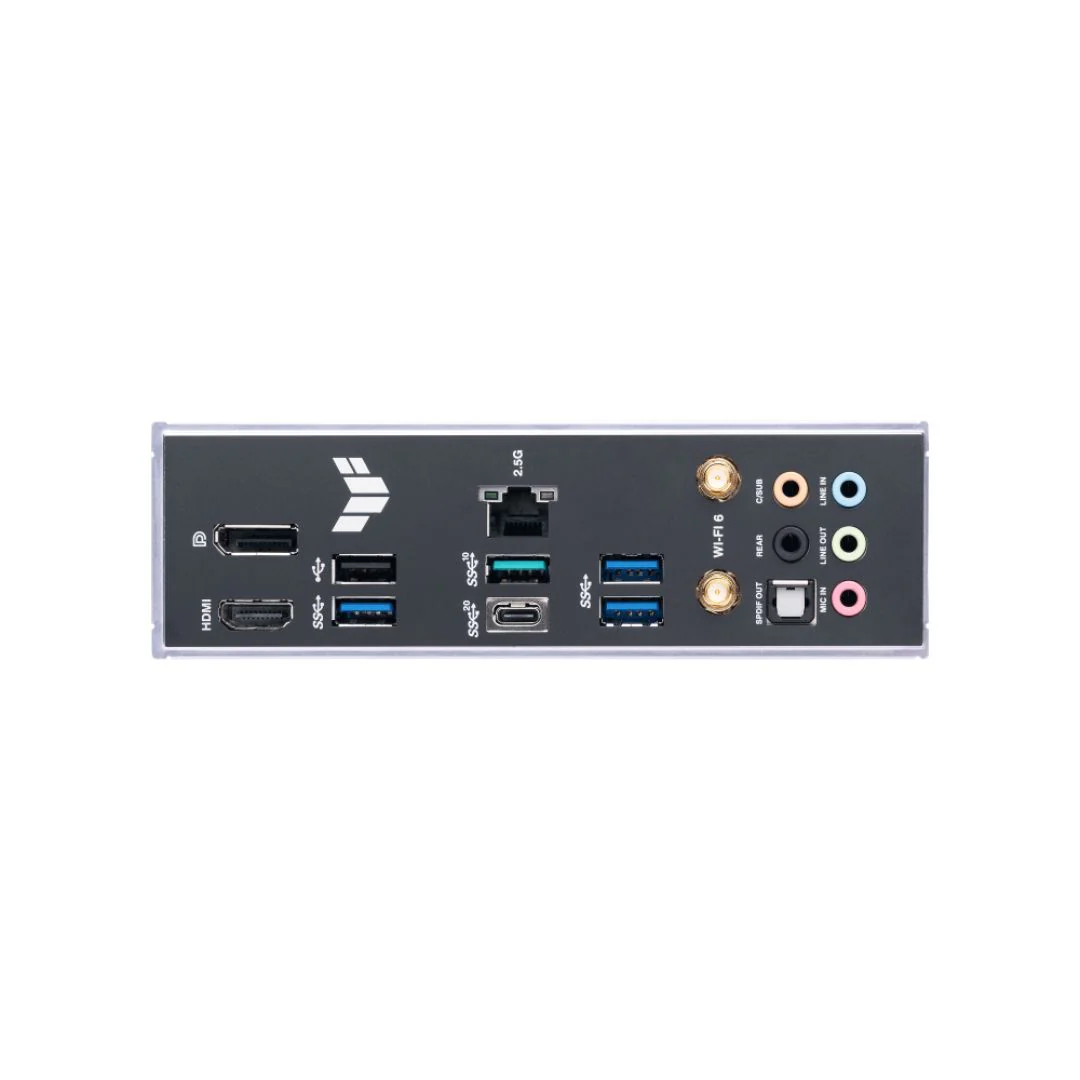

• Back Panel I/O Ports: Includes USB, DisplayPort, HDMI™, Wi-Fi Module, Ethernet, audio, and S/PDIF out ports
• Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
