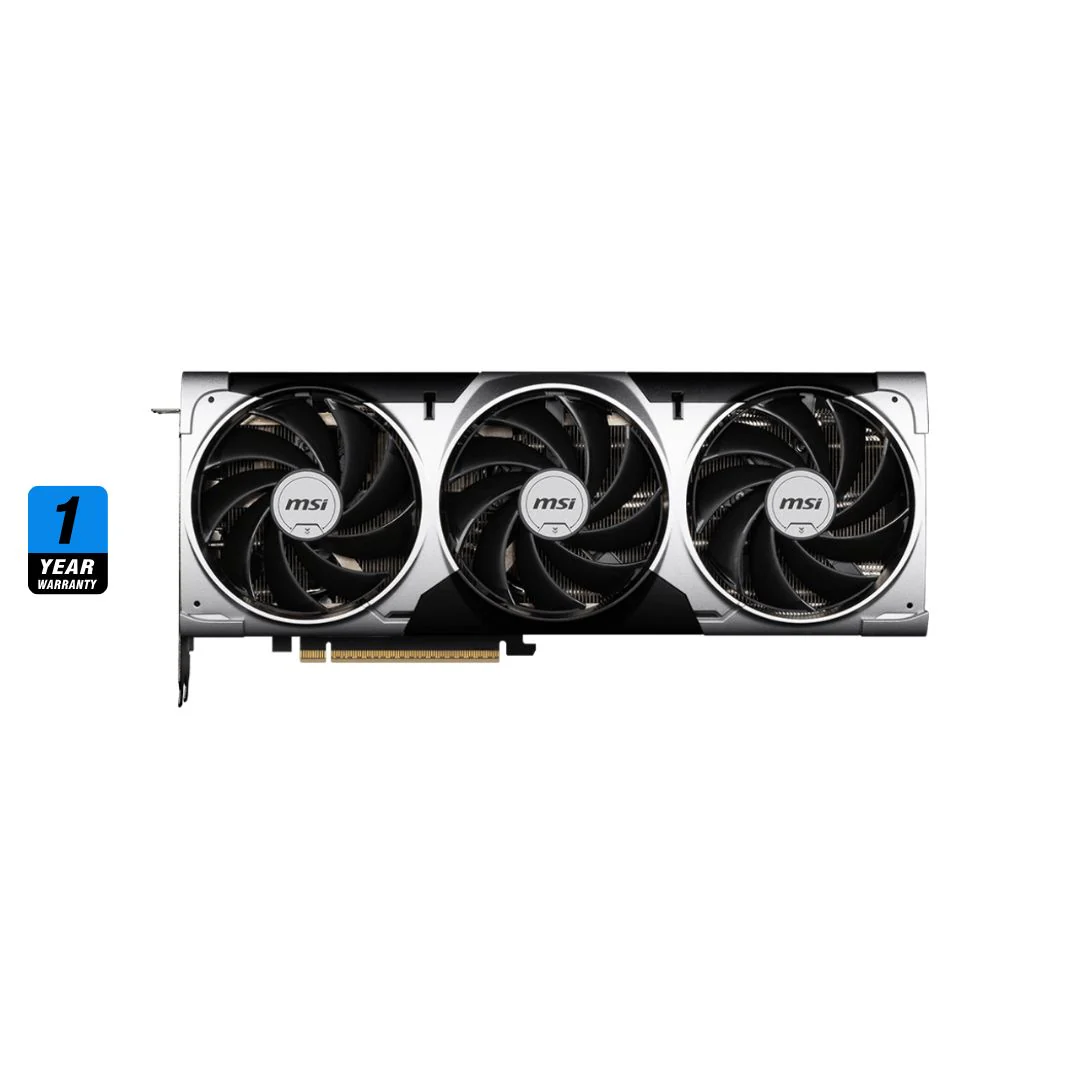

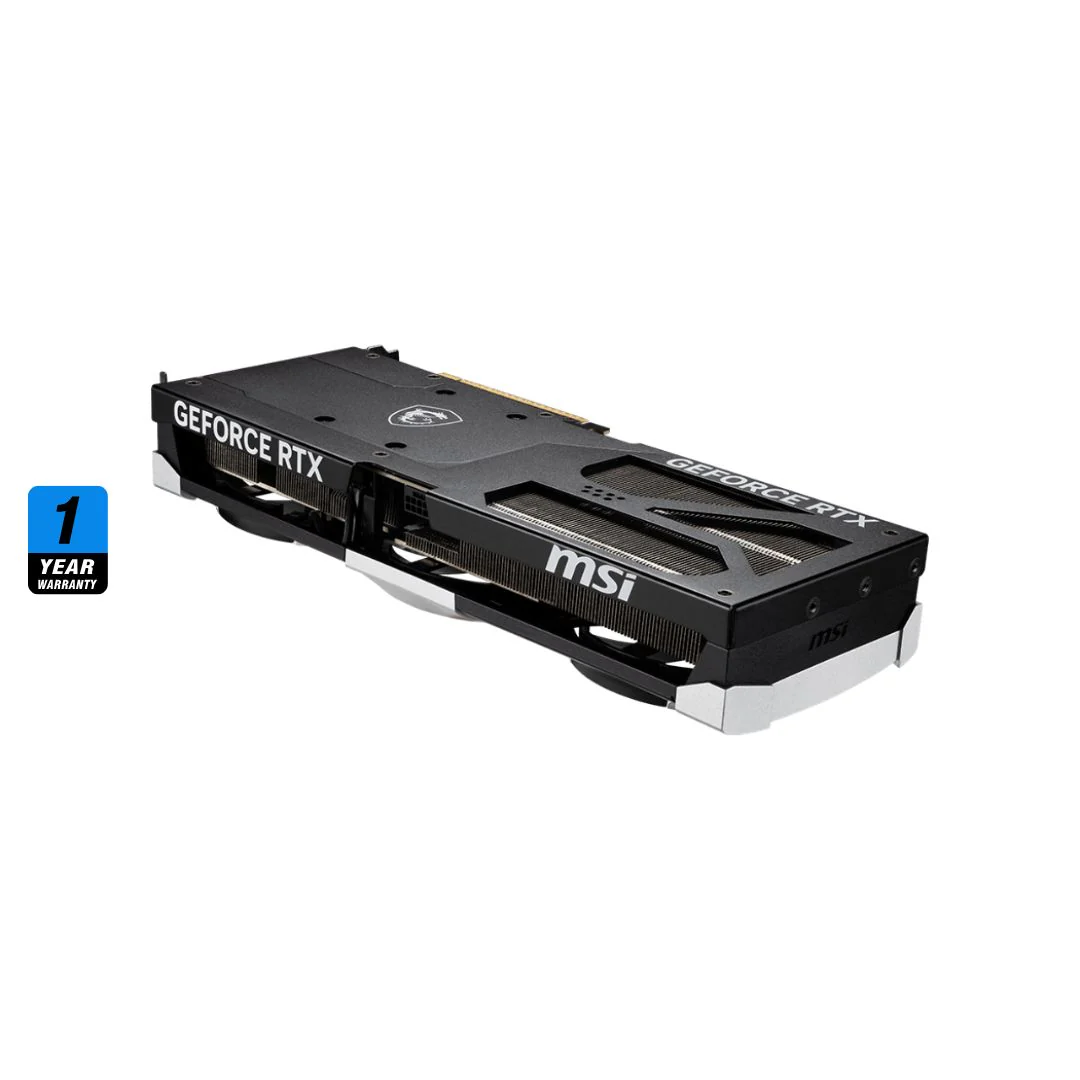

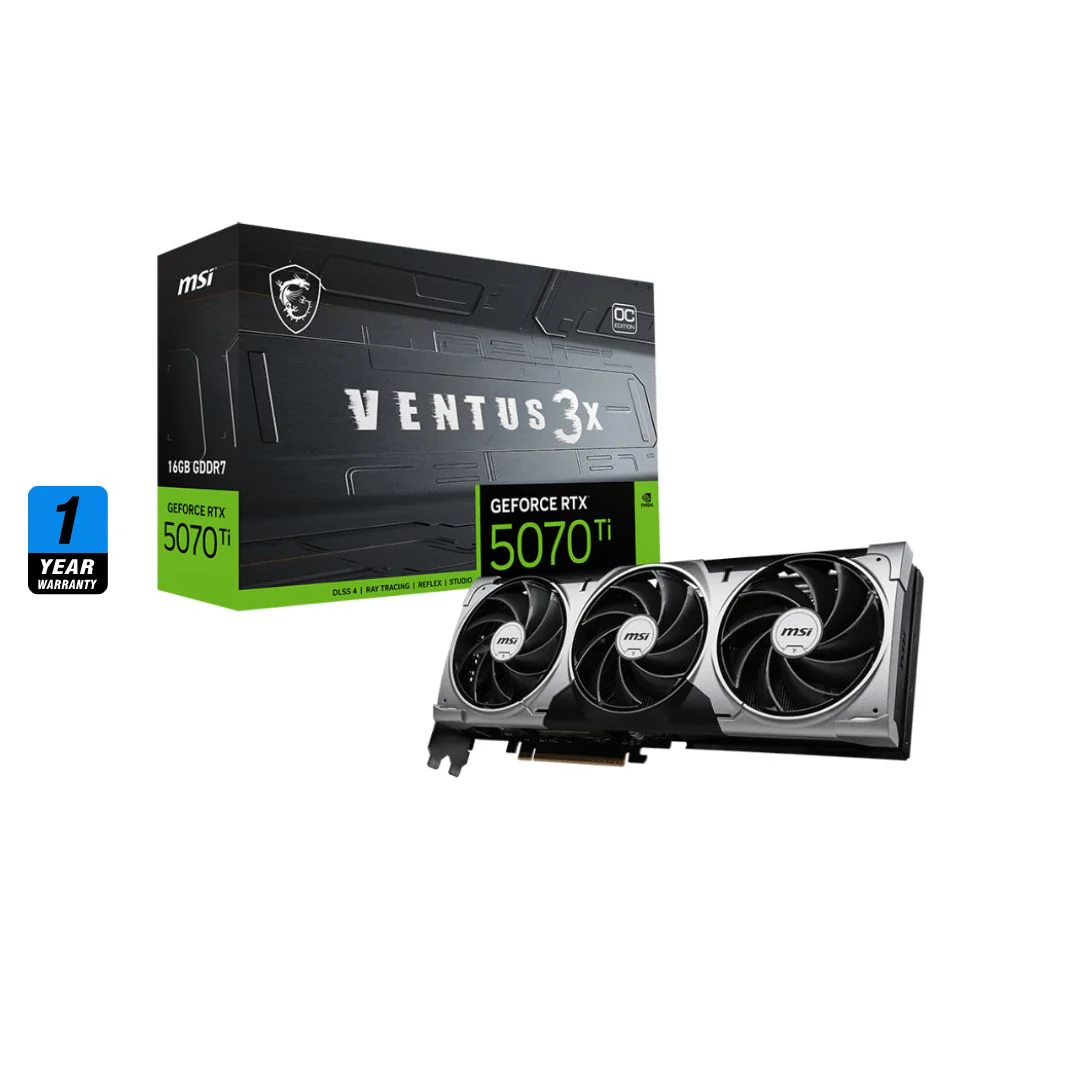

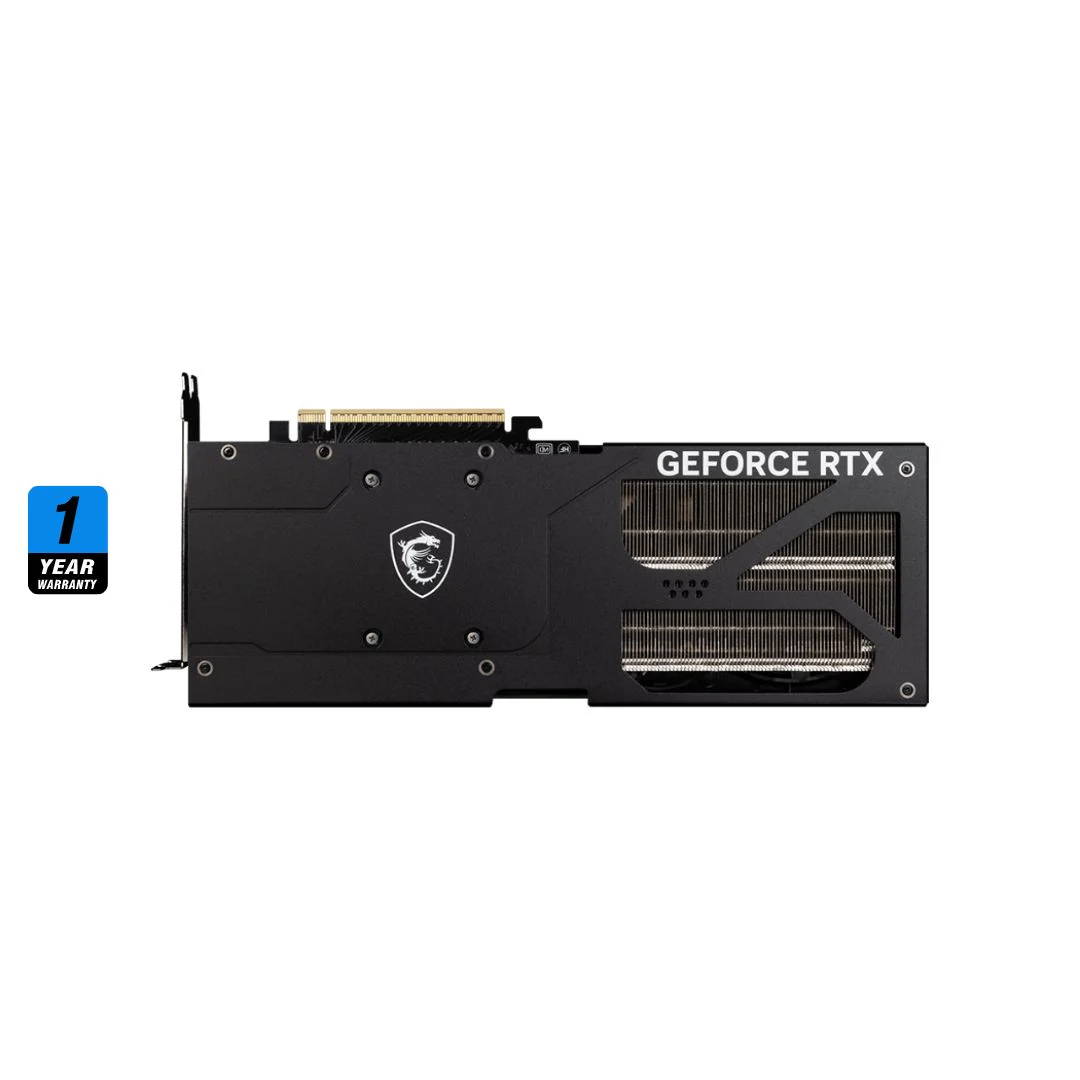

MSI GeForce RTX™ 5070 Ti 16GB VENTUS 3X OC

Graphics Card Specification

• Model: MSI GeForce RTX™ 5070 Ti 16GB VENTUS 3X OC
• GPU Architecture: NVIDIA Blackwell – GB203
• CUDA Cores: 8960
• Boost Clock: 2497 MHz
• Memory: 16GB GDDR7
• Memory Speed: 28 Gbps
• Memory Bus: 256-bit
• Bandwidth: 896 GB/s
• Ray Tracing Cores: 4th Gen
• Tensor Cores: 5th Gen
• Interface: PCIe 5.0 x16
• Cooling:
– Triple-fan TORX Fan 5.0
– Core Pipe with nickel-plated copper baseplate
– Airflow Control heatsink design
• Power Connector: 1 × 16-pin (12V-2x6)
• TDP: 300W
• Recommended PSU: 700W

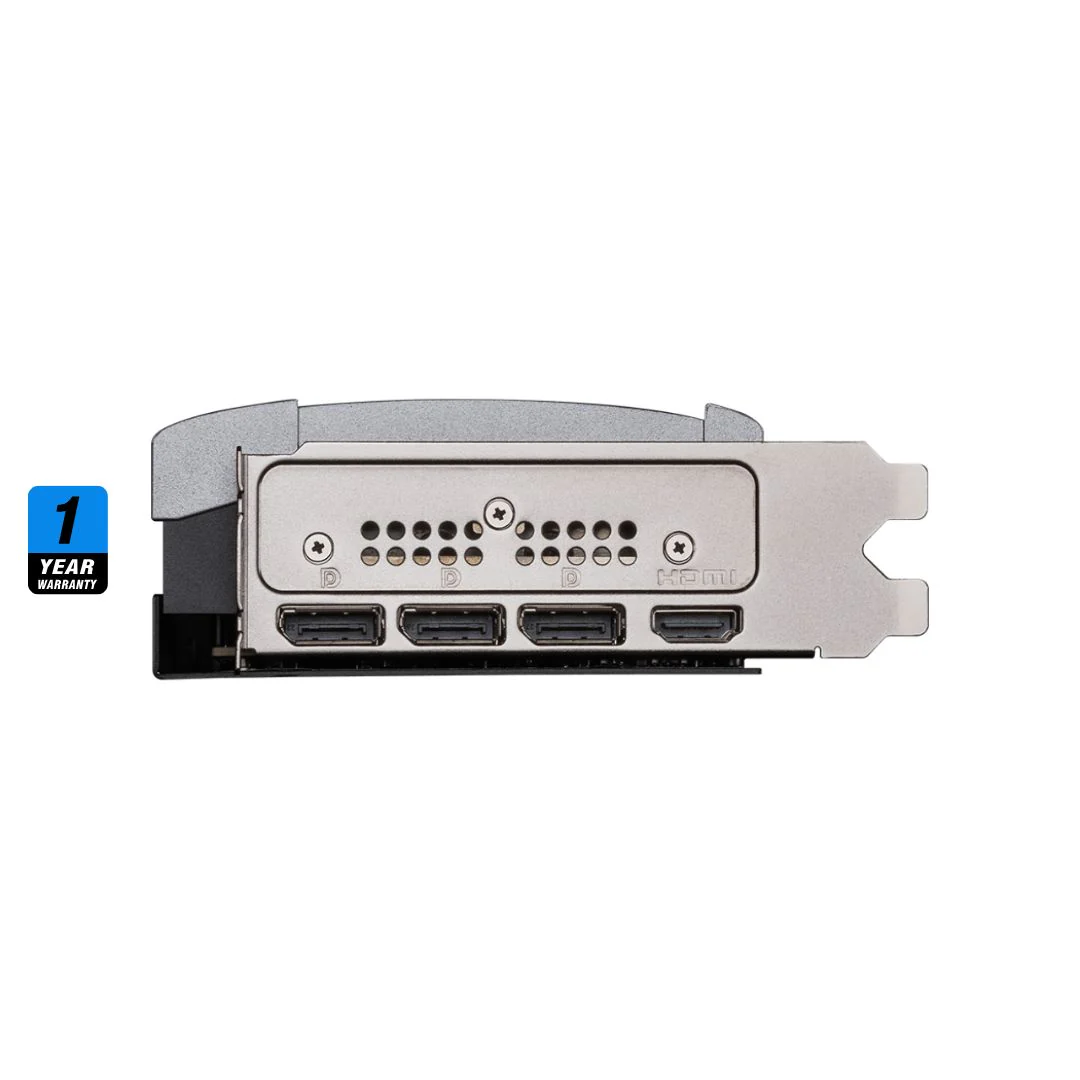

• Display Outputs:
– 3 × DisplayPort 2.1a
– 1 × HDMI 2.1b
• Max Resolution: 7680×4320 (8K UHD)
• Multi-Monitor Support: Up to 4 displays
• Features:
– DLSS 4 with Multi Frame Generation
– NVIDIA Reflex 2, RTX Video HDR
– NVIDIA Studio, Broadcast, ACE support
– 9th Gen NVENC / 6th Gen NVDEC
• Dimensions: Approx. 308 × 120 × 52 mm – Triple-slot
• Driver Support: Game Ready & Studio Drivers – Windows 10 / 11
